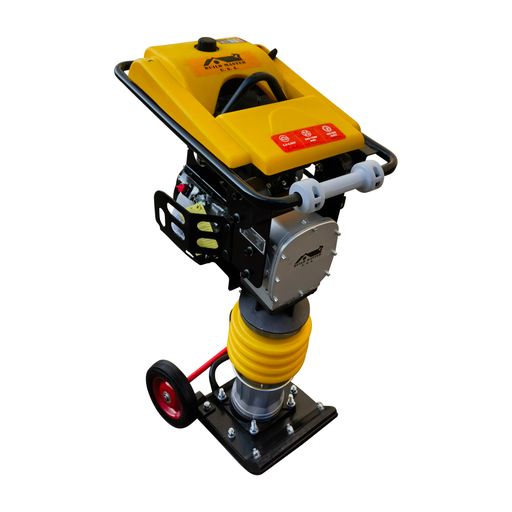

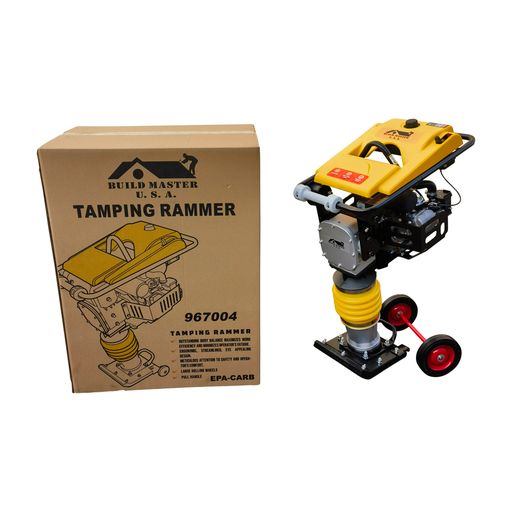

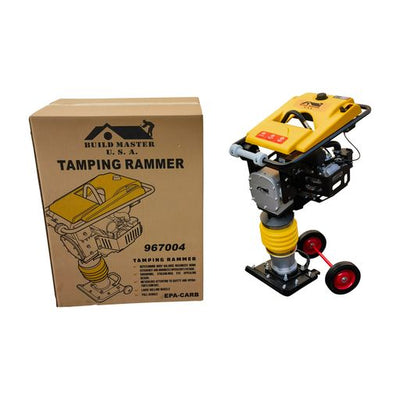

6.5HP 196cc Gas Power Jumping Jack Tamper Rammer Dirt Plate Compactor Jumper

PART SKU # 9767004

BRAND NEW

Gas Engine Tamping Impact Jack Rammer

Gas-powered tamping rammer is ideal for compacting cohesive soil in confined areas.

Powered by a 6.5 HP 196cc 4-cycle gasoline engine, it features a convenient oil checking system and dual filter system.

Rammer is lightweight and well balanced for easy handling and operation.

Suitable for trenches, pipelines and patching.

·         Aprox Unit overall dimension: 18''L x 28-3/4''W x 42''H Aprox

·         Powerful 196cc 6.5 HP 4-stroke gasoline engine supports 2364 lbs. of impact force

·         Impact force also known "ramming force": 10000N

·         Percussion rate (ramming frequency): 450~650 times/min

·         Jumping stroke (leap height): 40~65mm

·         Forward speed (advancing speed): 10-13m/min

·         Ramming plate size: 13" x 11-7/8" (330 x 300mm ) aprox

·         Lifting handles and rollers for easy loading and unloading of equipment

·         Compaction of soil, debris and aggregate materials up to 30 in.

·         Engine type: forced air-cooled, 4-stroke gasoline engine

·         Maximum power: 4.8 kW (6.5 HP) (3600 RPM)

·         Unit comes pre-assembled, works right out the box

·         EPA compliant
